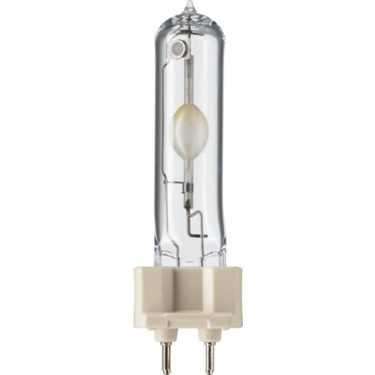

MASTERColour CDM-T Elite 100W/930 G12 1CT/12

Specifications Show all

General Information

Cap base	G12  [ G12]
Operating position	UNIVERSAL  [ Any/Universal]
Life to 5% failures (nom.)	12000 h
Life to 10% failures (nom.)	14000 h
Life to 20% failures (nom.)	16000 h
Life to 50% failures (nom.)	20000 h
ANSI code HID	C191/E

Light Technical

Colour code	930  [ CCT of 3,000 K]
Luminous flux (rated) (nom.)	11000 lm
Colour designation	Warm white (WW)
Lumen maintenance 1,000 hours (nom.)	97 %
Lumen maintenance 12,000 hours (nom.)	85 %
Lumen maintenance 10,000 hours (nom.)	87 %
Lumen maintenance 2,000 hours (nom.)	95 %
Lumen maintenance 4,000 hours (nom.)	93 %
Lumen maintenance 5,000 hours (nom.)	92 %
Chromaticity coordinate X (nom.)	0.432
Chromaticity coordinate Y (nom.)	0.399
Correlated colour temperature (nom.)	3000 K
Luminous efficacy (rated) (nom.)	110 lm/W
Color rendering index (min.)	89
Color rendering index (nom.)	92

Operating and Electrical

Power (Rated) (Min)	100.0 W
Power (Rated) (Nom)	100.0 W
Lamp current run-up (max.)	1.8 A
Ignition supply voltage (max.)	198 V
Ignition peak voltage (max.)	4500 V
Ignition supply voltage (min.)	198 V
Re-ignition time (min.) (max.)	15 min
Ignition time (max.)	30 s
Voltage (Max)	94 V
Voltage (Min)	82 V
Voltage (Nom)	88 V

Controls and Dimming

Dimmable	no
Run-up time 90% (max.)	3 min

Mechanical and Housing

Bulb finish

Clear (CL)

Approval and Application

Energy efficiency label (EEL)	A+
Mercury (Hg) content (nom.)	10.1 mg
Energy Consumption kWh/1000 h	110 kWh

UV

PET (NIOSH) (min.)	8 h/500lx
Damage factor D/fc (max.)	0.2

Luminaire Design Requirements

Bulb temperature (max.)	550 °C
Cap base temperature (max.)	250 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	872790087169200
Order product name	MASTERColour CDM-T Elite 100W/930 G12 1CT/12
EAN/UPC – product	8727900871692
Order code	87169200
Local Code	100CDMTELITE930
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	928183205125
Net weight (piece)	0.030 kg
ILCOS Code	MT/UB-100/930-H-G12-21/100
